Mechanical Seals

•  Face Materials : (Dynamic Ring & Stationary Ring) Carbon, Ceramic (99.5), Silicon Carbide, Tungsten Carbide, Chrome Cast & Steel...etc.
•  Elastomer : (Secondary Seal) Viton, EPDM, Aflas, PTFE, GFT, TCV & FEP, Kalrez
•  Hardware : SS 316, SS 304, Hast-C, Monel, Alloy-20
• Application

•  General Chemicals & Its Vapours
•  Petrochemicals & its vapours
•  Pharmaceutical Products
•  Light Hydrocarbons & its Vapours
•  Food Products
• Operating Limits

•  Shaft Diameter : 25 mm to 200mm (1.0' to 7.875")
•  Pressure : Vacuum....35 Bar (kg/cm 2)
•  Temperature : 60°c to 260°c
•  Shaft Speed : Upto 2000 RPM According to Shaft Size & Pressure.

Series: B91/CG & B901/CG

Cartridge Seals Manufacturer and Cartridge Seals Supplier



Cartridge Seals – we are tagged as the top manufacturer and supplier of quality cartridge seals. We offer cartridge seals for any industrial application.



We are tagged as the major manufacturer, supplier and exporter of the high quality cartridge seals, made of the best quality raw material. It is highly demanded in many industries.



We manufacture and export the high-quality cartridge seals. We are a major supplier of the mechanical seals like cartridge seals. We have designed and developed the series of B91/CG and B901/CG of the cartridge seals. It is specially designed for the various applications of the industries like chemical and petrochemical. The cartridge seals have its vast usage for syrup, water, oil, slurries, sludges and other chemicals at low and high pressure pumps. We have developed the single and double arrangements to suit the application.



Globe Star Standard Style

• Face Materials : (Dynamic Ring & Stationary Ring) Carbon, Ceramic (99.5%) Silicon Carbide. Tungsten Carbide, Chrome Cast - Steel & Which Are Suitable For Fluid
• Elastomer (Secondary Seal) : Viton, EPDM, Silicon, Aflas, PTEF, GFT TCV & FEP, Kalrez
• Hardware:SS 316, Hast - C, Monel Alloy - 20



Application

• Sludge & Syrup Pump
• Slurry Pump
• Chemical Petrochemical & Refinery
• Pulp & Paper
• Boiler Feed Water Pumps
• Oil Pipeline Pumps
• Clinker Grinders.



Seal Characteristics

• Balanced
• Single Acting
• Independent Of Direction of Rotation.
• Sturdy Drive Mechanism
• Stationary Multiple Springs.

- Circulation Pumps For Central Heating.

- Water Pumps

- Sewage & Submersible Pumps

- Chemical Process Pumps



- Shaft Diameter : (10 mm to 100 mm) (0.5" to 4.0")

- Pressure : 10 Bar (kg/cm )

- Temperature : -60 c to 180 c

- Shaft Speed : Upto 6000 RPM According to Shaft Size & Pressure.

Series: B89RA/CG

The globe star engineers (india) are the major mechanical seal providing company of India. We are considered as the trustworthy manufacturer, supplier and exporter of the dryer running reverse balance seal. We have designed and developed the B89 RA/CG series of dry running reverse balance seals.



The seals are fabricated from the high-grade material and dynamically tested on steel, glass lined and SS mixers, agitator and vessels.



The dry-running reverses balance seal is used on top entry agitators. The seals are used to prevent contamination in food products and pharmaceutical products, agitated by agitator mixers. The seals do not require any external media for lubrication. Different types of face materials and elastomers are used for the relevant functioning. That’s why the seal has a wide range of application in the industry.

• Highly reliable
• Rustproof
• Resistance against abrasion
• Sturdy construction
• Reliable and durable
• Easy to install and operate
• Dimensionally accurate
• Perfectly finished



Globe Star Standard Style

• Face Materials : (Dynamic Ring & Stationary Ring) Carbon, Ceramic (99.5%) Silicon Carbide, Tungsten Carbide, Chrome Cast Steel & Which Are Suitable For Fluid.
• Elastomer : (Secondary Seal) Viton, EPDM, Silicon, Aflas, PTFE, GFT, TCV & FEP, TTV, Kalrez.
• Hardware : SS 316, SS 304, Hast-C, Monel, Alloy 20



Application

• General Light Chemicals
• Food Products
• Pharmaceutical Products
• Corrosive Chemicals



Seal Characteristics

• Outside Mounted
• Independent of Direction of Rotation
• Reverse Balanced
• Dry Running Type
• Single Acting

Series : B89R

As a one of the leading company manufacturing, supplying and exporting the mechanical seals, we offer the finest quality of external mounted reverse balances seal. We have designed the B89R series of seals, with ‘o’ ring as a secondary seal. The external mounted reverse balance seal is specially fabricated for the application with the corrosive chemicals. The seals are used for the protection of the metallic components like retainer, washer and spring. The seal face and elastomers can be customized as per requirement of the application. The seal can perform better in the acidic and extremely corrosive atmosphere.



Globe Star Standard Style

• Face Materials : (Dynamic Ring & Stationary Ring ) Carbon, Ceramic (99.5%). Silicon Carbide, Tungsten Carbide, Chrome Cast Steel, Stellite & Which Are Suitable For Fluid.
• Elastomer : (Secondary Seal) PTFE, GFT, CFT, FEP, TCV, Viton, Silicon, NBR.
• Hardware : SS 316, SS 304, Hast - C, Monel, Alloy -20.



Application

• Acid & Acidic Atmosphere
• General & Light Chemicals
• Extremely Corrosive Services



Seal Characteristics

• Single Acting
• Reverse Balanced
• Independent Direction Of Direction
• Out-side Mounted

GSRX1" MODEL ROTARY JOINTS RIGHT HAND / LEFT HAND SHAFT THREAD. OPERATION DATA

•  Pressure : Upto 10 Bar
•  Rpm : 5000 RPM
•  Temperature (Max) : Air & Water : 90°C, Hyd. Oil & Gas : 120°C To 150°C

SPECIFICATION DATA

•  Available Size : 1/4" To 4"
•  Housing : Aluminum, C.I, Brass Or Gun Metal, S.S
•  Shaft : M.S, S.S ( Stainless Steel) SS 304, SS 316
•  Seals : Carbon, PTFE, CFT, SIC, TC, SS, Ceramic
•  Media : Water, Oil, Gas, Chemical, Air

Applications:

• Sludge & syrup pump
• Slurry pump
• Chemical petrochemical & refinery
• Pulp & paper
• Boiler feed water pumps
• Oil pipeline pumps
• Clinker grinders

Seal characteristics:

• Balanced
• Single acting
• Independent of direction of rotation
• Sturdy drive mechanism
• Stationary multiple spring

Series : MB61 & MB66

Metal Bellow Seals Manufacturer, Metal Bellow Seals Supplier



Metal Bellow Seals - specialist of metal bellow seals manufacturer and supplier in India. Metal bellow seals are best for high temperature applications.



Being one of the top most manufacturer, supplier and exporter of the various types of mechanical seals, we provide the metal bellow seal made of high quality raw material.



We have specially designed and fabricated the MB61 and MB66 series of welded metal bellow seals, for moderate temperature/pressure and high temperature/moderate pressure. The metal bellow seals are proven ideal for the high temperature and high corrosive application. These bellow seals are fabricated by welding a series of diaphragms together at the edges to form a bellows unit.



The metal bellows seals are used in the place of the spring and provide the flexibility to the seal. The seal is available as rubber o-ring and grafoil to use at extremely high temperature.

• Easy to install
• Easy to remove
• Firm grip
• Low maintenance
• Sturdy construction



Globe Star Standard Style

• Face Materials : (Dynamic Ring & Stationary Ring ) Carbon-M, Silicon Carbide, Tungsten, Carbide.
• Secondary Seal : MB61 - Viton, Kalrez
• MB66 - Grafoil
• Hardware : AISI 316, SS 304, Carpenter-42
• Welded bellow : AM 350



Application

• Petrochemical
• Chemical
• Refinery
• Thermic Fluid



Seal Characteristics

• Independent of Direction of Rotation
• Single Acting
• Welded Metal Bellows
• Inherently Balanced

•  Face Materials : (Dynamic Ring & Stationary Ring ) Carbon, Ceramic (99.5%). Silicon Carbide, Tungsten Carbide, Chrome Cast Steel & Which Are Suitable For Fluid.

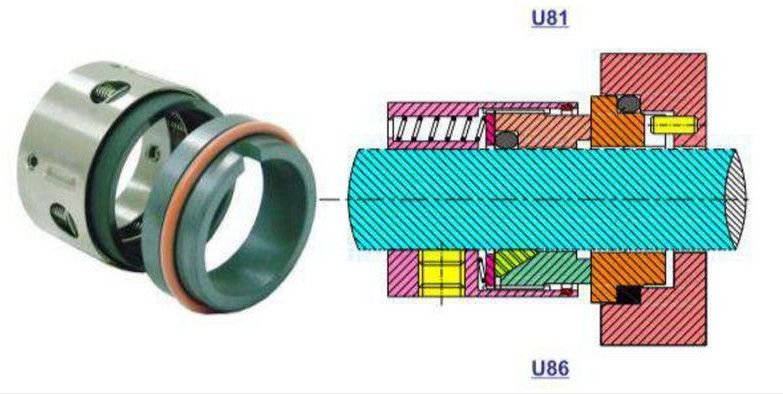

•  Secondary Seal : U81 & B81 : Viton, EPDM, Silicon, Aflas, EPR, Kalrez, TCV.
  U86 & B86 : GFT, PTFE, FEP, Grafoil.


•  Hardware : SS 316, SS 304, Hast - C, Monel, Alloy -20.Application

Light Hydrocarbon, Dirty, Media.

•  Petrochemicals


•  Petroleum Refinery


•  General Chemicals

Operating Limits



Shaft Diameter : 12 mm to 100 mm (0.5" to 4.0")

•  Pressure : Unbalabnce 10 Bar (kg/cm 2 ) & Balance upto 35 bar (kg/cm 2 )


•  Temperature : -60°c to 260°c


•  Shaft Speed : Upto 6000 RPM According to Shaft Size & Pressure.

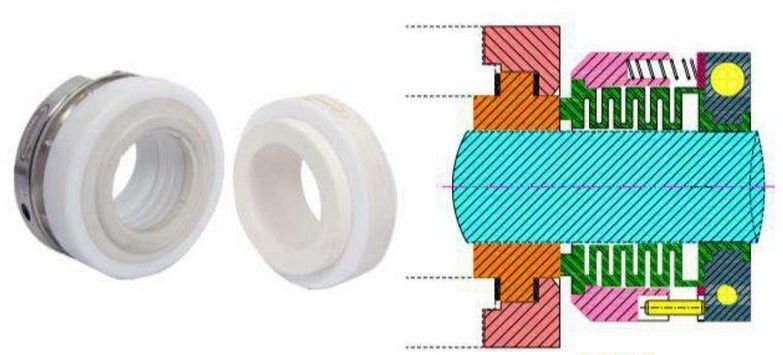

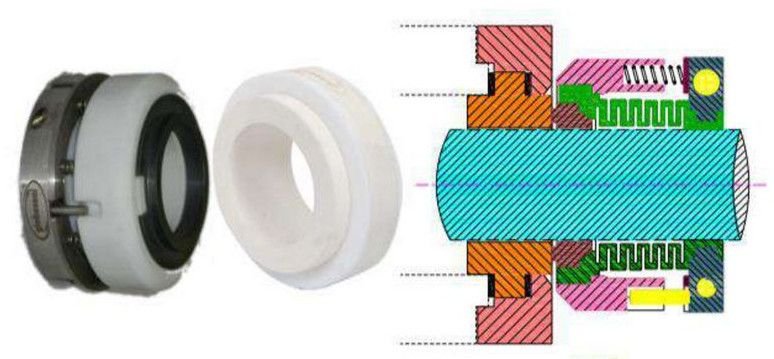

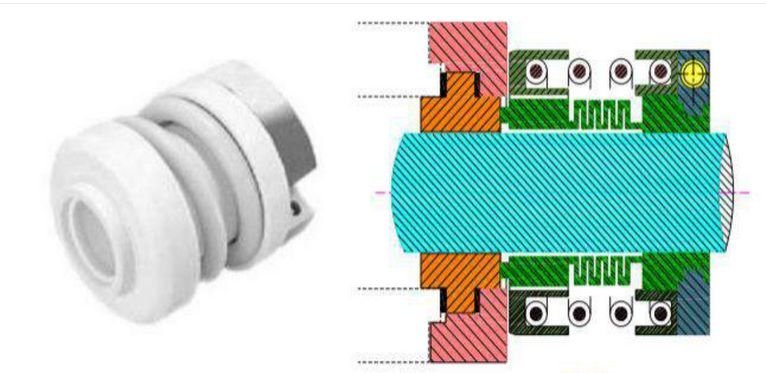

Face Materials :

Rotary : GFT, PTFE, Silicon Carbide, Carbon

Stationary : Ceramic

Metal Parts :

SS 316, SS 304, Monel, Alloy-20

Springs :

SS316, Hast-C, Alloy-20 &

Spring Steel or SS 304 Covered by Teflon Tube

Secondary Seal :

PTFE Bellow, Gasket



Shaft Diameter : 10 mm to 100 mm (0.5" to 4.0")

Pressure : 10 Bar (kg/cm )

Temp : 30 C to 120 C

Shaft Speed : Upto 4000 RPM According to

Shaft Size & Pressure.

Rubber Bellow Seals - manufacturer and supplier of Rubber Bellow Seals offered by globeseal.com. We provides quality Rubber Bellow Seals at best prices.



Being popular as one of the leading manufacturers, suppliers and exporters of the highest quality of the rubber bellow seal, we offer the seal with high mechanical strength.

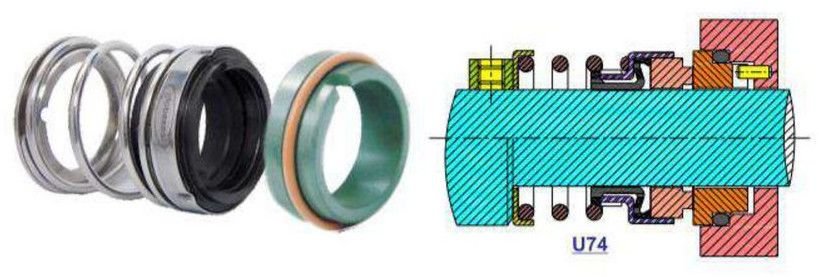

Series : U74

The globe star engineers (india), Gujarat, India manufacture, supply and export the rubber bellow seals for the water and oil. It is specially designed to protect the shaft. We offer the U74 series of the rubber bellow seals. The seals are rotating to bellows. The rubber bellow seals can be customized as per client’s specification and requirement.



The rubber bellows seals are used in water pumps, submersible pumps and sewage pumps.

• Easy installation
• Easy to remove
• Sturdy construction
• Low maintenance
• Long-lasting



Globe Star Standard Style

• Face Materials : (Dynamic Ring & Stationary Ring ) Carbon, Ceramic (99.5%). Silicon Carbide, Tungsten Carbide, Chrome Cast Steel & Which Are Suitable For Fluid.
• Elastomer : (Secondary Seal) Viton, Nitrile, Neoprene , Aflas, Silicon, As Per Application.
• Hardware: SS 316, SS 304, Hast-C, Monel, Alloy-20



Application

• Water Pumps
• Submersible Pumps
• Sewage Pumps



Seal Characteristics

• Single Acting
• Unbalanced
• Independent Of Direction Of Rotation
• Torque Transmission By Elastomer Collar

Single Coil Spring Seals at GlobeSeal.com



Single Coil Spring Seals: custom design single coil spring seals at globe seal. We are prime manufacturer & supplier of single coil spring seals in India.

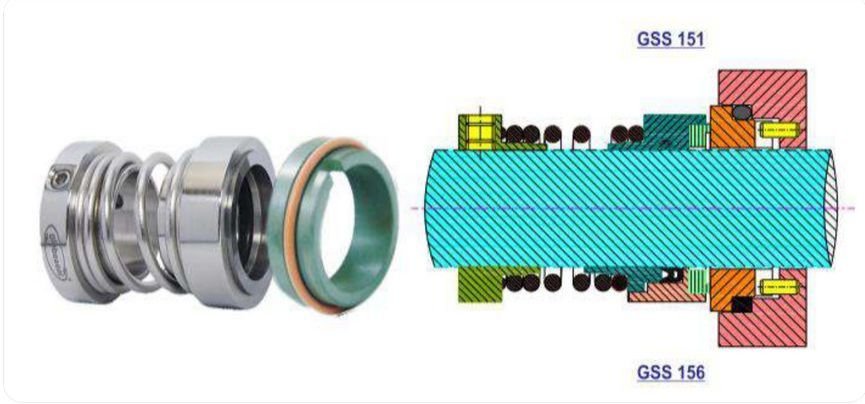

We provide the specially designed GSS – 151 and GSS – 156 series of seals for the various industrial applications. It is an internal mounted unbalanced single coil spring seal, driven by the clutch. The seal contains drive ring and drive collar. If spring clogged, the rotary will be drive reliably. The motion transmits by the shaft to springs, drive by the rotary. The seals are mounted internally.



All parts of the single-coil springs are interchangeable. We can convert the series GSS – 151 to GSS – 156 by changing the secondary seal and dynamic ring. It is an ideal principle for the stock rationalization.



The seal has its wide applications in various industries. It is used in petrochemicals, general chemicals, dirty water and slurry and in petroleum refineries.



Globe Star Standard Style

• Face Materials : (Dynamic Ring & Stationary Ring ) Carbon, Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, Chrome Cast Steel & Which Are Suitable For Fluid.
• Secondary Seal : GSS - 151 : Viton, EPDM, Silicon, EPR, Kalrez.GSS - 156 : GFT, PTFE, TCV, FEP.
• Hardware : SS 316, SS 304, Hast - C, Monel, Alloy -20.



Application

• High Hydrocarbon
• Petrochemicals
• General Chemicals
• Dirty Water & Slurry
• Petroleum Refinery.



Seal Characteristics

• Inside Mounted
• Single Acting
• unbalanced
• Independent Of Direction Of Rotation

Applications

•  In fertilizers


•  For the corrosive liquids


•  For the acid pumps


•  For chemical industry


•  For petrochemical industry


•  For the sewage
