Product Details
Flow
UP TO 400 M3/HR
Head
UP TO 150 MTR
Discharge Size
UP TO 8 Inch(200 MM)
Design Pressure
UP TO 16 Bar
Flange STD
B 16.5 /150 Class
RPM
UP TO 2900 RPM

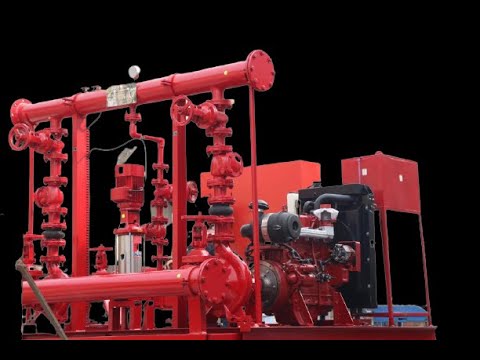

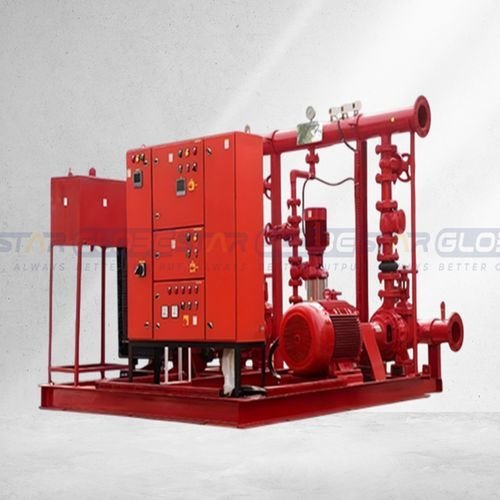

The Fire Fighting System "GSFFS SERIES" is widely used for Domestic and Industrial Application, high rise commercial and industrial building, HVAC, residential building, chemical industries, oil and refinery, hazardous and flammable gas and oil industry, pharma industries.
Material Construction
| Shaft | Impeller | Casing | Stuffing Box | Sleeve | Sealing Details |
| SS 410, SS 316 | CI, SS 304, SS 316, Bronze | CI, SS 304, SS 316, Bronze | CI, SS 304, SS 316 | SS 410, SS 316 | Gland Packing / Mechanical Seal |
.
| Features | Applications |
| Back pull out construction design | Chemical, food, pharma industries for fire fighting purpose |
| High head and pressure developing capacity | School, building, residential, commerical complex |
| As per competable fire standard norms | Gas and petrochemical plant |
| Competable with NBC - national building code of india part 4 | Airport,railway station,bus ports |
| On shore and off shore platforms in drilling oil and gas |
