| Business Type | Manufacturer, Exporter |
| Flow | UP TO 500 LPM |
| Head | 100 MTR |
| Speed | UP TO 1440 RPM |
| Click to view more | |
Product Details
Pressure
10 KG/CM2
Sealing Detail
Gland/Mechanical Seal
Material Of Construction (MOC)
C.I, SS 316
Driven Type
Electric
To Deliver variety of light and viscous liquid such as oil, fats, Coal tar. Paints, Molasses Highly viscous materials and liquids Paints, Ammonia, Glycerine, Grease etc.
Material Construction
| Gear | Suc X Discharge | Bearing Housing | Shaft | Bush | Casing |
| EN 8, SS 316 HARDNED | FLANGE/THREAD | CI | EN8, SS 316 | PTFE/BRONZE/DU | CI, SS 316 |
.
| Features | Applications |
| Compact design ,moc customization as per application | Viscous and semi viscous liquid |
| Ability to handle viscous and semi viscous liquid | Vegetable and edible oil |
| Self priming up to 3 mtr, pulsation free discharge | Paint, varnish, castor oil, coton seed oil |
| Easy to maintain and operate | Sugar, molases various type oil |
Performance Chart
| Pump Model | Suc x Dis. | Capacity at 1440 RPM | Recommended motor BHP at Difference Pressure / Head Kg/cm² with 1500 SSU viscosity | WT. of Bare Pump in kg. | ||||||||||||
| LPM | GPM | M³/hr | Head Kg/cm² | |||||||||||||
| kg/cm2 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||||||
| METER | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||||||
| GGP-50 | 1/2" x 1/2" | 20 | 5.3 | 1.2 | KW | 0.3 | 1.35 | 0.4 | 0.45 | 0.5 | 0.55 | 0.6 | 0.65 | 0.7 | 0.75 | 2.2 |
| HP | 0.5 | 0.75 | 1 | |||||||||||||
| GGP-75 | 3/4" x 3/4" | 30 | 7.9 | 1.8 | KW | 0.37 | 0.45 | 0.54 | 0.62 | 0.69 | 0.77 | 0.85 | 0.92 | 1.01 | 1.09 | 4.2 |
| HP | 0.75 | 1 | 1.5 | |||||||||||||
| GGP-100 | 1" x 1" | 50 | 13 | 3 | KW | 0.4 | 1.5 | 0.6 | 0.75 | 0.89 | 1.04 | 1.17 | 1.3 | 1.46 | 1.59 | 5 |
| HP | 1 | 1.5 | 2 | |||||||||||||
| GGP-125 | 11/4" x 11/4" | 75 | 20 | 4.5 | KW | 0.7 | 1 | 1.2 | 1.4 | 1.5 | 1.9 | 1.95 | 2.15 | 2.35 | 2.55 | 8 |
| HP | 1.5 | 2 | 3 | |||||||||||||
| GGP-150 | 11/2" x 11/2" | 110 | 29 | 6.6 | KW | 1.05 | 1.45 | 1.95 | 2.1 | 2.4 | 2.65 | 2.95 | 3.25 | 3.6 | 3.75 | 9.5 |
| HP | 2 | 3 | 5 | |||||||||||||
| GGP-200 | 2" x 2" | 225 | 59 | 13.5 | KW | 2 | 2.5 | 3.2 | 3.75 | 4.3 | 4.55 | 5.6 | 6.2 | 6.9 | 7.11 | 17.2 |
| HP | 3 | 5 | 7.5 | |||||||||||||
| GGP-250 | 21/2" x 21/2" | 350 | 93 | 21 | KW | 4.15 | 5.2 | 6.1 | 7.3 | 8.2 | 9.1 | 10.3 | 11.2 | 12.1 | 12.25 | 28.5 |
| HP | 5 | 10 | 12.5 | |||||||||||||
| GGP-300 | 3" x 3" | 500 | 132 | 30 | KW | 4.5 | 6.6 | 6.4 | 9.9 | 11.1 | 12.1 | 13 | 13.9 | 14.9 | 15.9 | 40 |
| HP | 10 | 15 | 20 | |||||||||||||

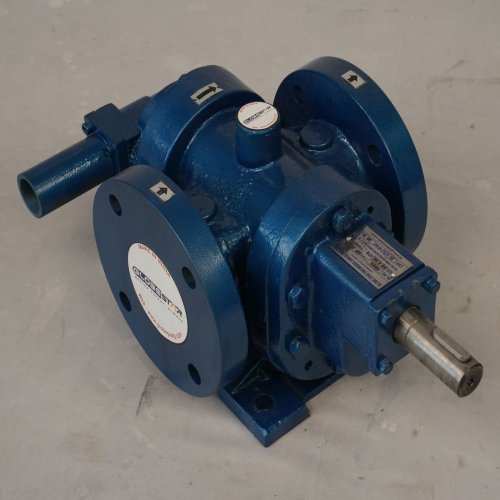

Looking for "Rotary Gear Pump" ?
